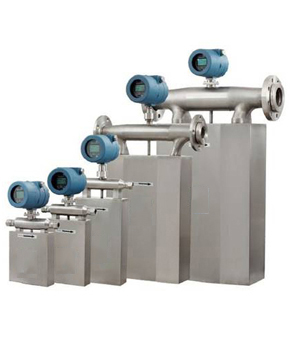

Coriolis Mass Flow Meter: SDL-1
Features and Benefits:
1. Directly measure the "Mass" of the liquid.
2. The accuracy is the highest among all types of flow meters,
±0.1%-±0.2%.
3. The range of application is large, and it can be used for the
medium which is difficult to be measured, such as high
temperature, high pressure, high viscosity, double phases and
triple phases.
4. Installation is easy, the straight pipe requirements in front of
and behind the mass flow meter are low.
5. More reliable, stable, and low maintenance level.
6. Easy operation and space saving
|
Main Technical Parameters
Measurement scope |
2kg/h~500t/h |
Accuracy |
±0.2%~±0.15% |
Work pressure |
0~32) MPa (in case of other high pressure, it must be of special order) |
Medium temperature |
-50℃~ +350℃ |
measurement accuracy |
±1℃ |
Repeatability |
±0.10% Flow Rate ±[1/2(Zero Point Stability/Flow Rate)*100]% Flow Rate |
Environment temperature |
-20℃ ~ +70℃ |
Measurement medium |
liquid, gas, solid, or two phases and three phases mixed fluid |
Output signal |
4-20mA current signal of flow, with load resistance ≤500Ω
0-10KHz frequency signal of flow.
RS485 Communication protocol
Hart protocol |
Power supply voltage |
24VDC |
Material of measuring pipe |
316L stainless steel |
Response time |
0.1s～5s, adjustable |
Explosion-proof grade |
Ex(ib)II BT2-T5 |
Micro Flow Meter- SDL-1-1, SDL-1-2
Model |
DN |
Measurement scope |
Work Pressure （MPa） |
Connection type (mm) |
（kg/h） |
SDL-1-1-AB |
1.5 |
0~4 |
0~32 |
Weld Joints Φ6×1.5 |
SDL-1-1-A |
3 |
0~40 |
0~32 |
Weld Joints Φ6×1.5 |
SDL-1-1-B |
6 |
0~100 |
0~25 |
Weld Joints Φ10×2 |
SDL-1-2-A |
8 |
0~200 |
0~20 |
Weld Joints Φ10×1 |
Medium-Small Flow Meter: SDL-1-3-A, SDL-1-4, SDL-1-5-A
Model |
DN |
Measurement scope |
Work Pressure (MPa) |
Connection Type(mm) |
(kg/h) |
SDL-1-3-A |
12 |
0～500 |
0～25 |
Weld Joints Φ20×4 |
SDL-1-3-B |
14 |
0～1000 |
0～25 |
Weld Joints Φ20×3 |
SDL-1-4 |
16 |
0～3000 |
0～25 |
Weld Joints Φ20×2 |
SDL-1-5-A |
25 |
0～10000 |
0～25 |
Weld Joints Φ31×3 |
Large-scale Flow Meter: SDL-1-3, SDL-1-4, SDL-1-5, SDL-1-6
Model |
DN |
Measurement scope (t/h) |
Work Pressure (MPa) |
Connection Type(mm) |
SDL-1-3-A |
10 |
0-0.5 |
0～4 |
Flange 10 |
SDL-1-3-B |
15 |
0-1.0 |
0～4 |
Flange 15 |
SDL-1-4 |
20 |
0-3.0 |
0～4 |
Flange 20 |
SDL-1-5-A |
25 |
0-10 |
0～4 |
Flange 25 |
SDL-1-5-B |
40 |
0-20 |
0～4 |
Flange 40 |
SDL-1-6-A |
50 |
0-30 |
0～4 |
Flange 50 |
SDL-1-6-AB |
65 |
0-50 |
0～4 |
Flange 65 |
SDL-1-6-B |
80 |
0-100 |
0～4 |
Flange 80 |
SDL-1-6-C |
100 |
0-150 |
0～4 |
Flange 100 |
SDL-1-6-D |
150 |
0-300 |
0～2 |
Flange 150 |
SDL-1-6-E |
200 |
0-500 |
0～2 |
Flange 150 |
